Knowledge Sharing In Change Management: A Case
Study In The French Railways Company
Anne Remillieux ¹, Claire
Petitmengin ¹, Jean-Louis Ermine ¹, Christian Blatter ²
¹ Institut Télécom, France, ² SNCF,
France
ABSTRACT:
This paper describes a
project to represent and share tacit change management knowledge. Based on
ontology, this project enables French Railways Company (SNCF)’s project
managers to share their know-how through an IT device called «knowledge
server».
Keywords: Knowledge management, Tacit knowledge sharing, Change
management, Conceptual graphs, Ontology
1. Introduction
In order to promote a
change management approach within the company, the National French Railways
Company (SNCF) decided to make available to its staff a tool to share their
knowledge and experiences on the domain; Ontology for Change Management (OCM)
was developed in the following context. To satisfy this request, SNCF needs to
design a model in which the change managers’ knowledge can be formalized,
capitalized, and, finally, shared.
Existing models are
inappropriate for those requirements, which are situated between goal-oriented
modelling (Lamsweerde & Willemet 1998, Lamsweerde 2001, Nurcan &
Rolland 2003, Kavakli & Loucopoulos 2006) and argumentation models (Verheij
2005, Echtler 2006). First, similarly as design methodologies and goal-oriented
approaches, we aim at facilitating decision making and communication. However,
whereas goal-oriented approaches basically deal with the world to design, OCM concerns ways of knowing and designing, like argumentation models do.
However, our model should also be distinguished from argumentation models:
whereas the latter model negotiation processes, especially for interfaces of
dialog systems, OCM’s objective is to allow actors to share their
knowledge.
We have chosen a specific
model adapted to our aim. This model is an ontology that represents change
management knowledge in the formalism of conceptual graphs (Sowa 1984). Once
implemented, this ontology is used as a structure for a change management
knowledge server. By “knowledge server”, we mean “an
information system allowing users to improve their practice”. In other
words, a knowledge server is a system which, instead of simulating human
reasoning as an expert system would do, provides the user with some support for
reasoning by analyzing the knowledge he needs. As the possible strategies for
change management are diverse and strongly context dependent, it is a mean for
encouraging users’ reasoning and action, instead of guiding them towards
a single recommendation resulting from automatic reasoning.
In order to build ontology
of change management knowledge, we could use a foundational ontology, but no
existing ontology is adequate because of the particular nature of change
management knowledge. Indeed, the concerned knowledge domain can be considered
rather as know-how (defined as an
ability to use knowledge in practice) than as a particular scientific domain,
as change management involves taking human factors into account when managing a
project. Although change managers can refer to a substantial body of literature
e.g. Brénot and Tuvée (1996), Grouard and Meston (1993), Joule and Beauvois
(2003), Watzlawick (1980), Crozier and Friedberg (1977), Latour (1993). change
management remains a practice which is acquired by experience, i.e. repeated
confrontation of the practitioner with various problematic situations. This
leads to a type of knowledge that is embedded in action and very implicit.
Several degrees of implicitness exist, from knowledge which is conscious but
not formalized to knowledge which is not conscious. Later in this paper, these
various degrees of implicitness are combined in the generic term “implicit”.
This latter degree of implicitness, inaccessible without some methodical
elicitation (Vermersch 2001), is what (Polanyi 2002) calls “the
tacit”.
Existing ontologies are not
adapted to tacit knowledge representation since current research practice on ontology
engineering does not meet the issue of tacit knowledge elicitation. Yet, most
of the times, the domain to be modelled is easily accessed. Indeed, at first,
the domain is often already expressed in a corpus of texts as in the case of
Semantic Web or medical ontologies using terminology extracted from texts
(Baneyx & Charlet 2005). In this context, the “reality” is
immediately accessible in the universe of discourse. The elicitation work then
essentially consists in identifying the instances and gathering them into
concepts. Furthermore, when the domain to be modelled is not already expressed
in a corpus of texts, it is a technical or physical reality (Bennett 2005)
whose structure is already well known, such as chemistry (Fernandez-Lopez et
al. 1999) or medicine (Zweigenbaum & Menelas 1995).
This paper presents the
domain Ontology for Change Management, which is built starting from the
analysis of change management knowledge and composed of about fifty concepts
(upper levels) and a hundred relations. OCM enables to represent tacit change
management knowledge into conceptual graphs and to specify a knowledge server.
But it has a more general scope as it regards the sharing of tacit knowledge
within an organization. More precisely, the principles of OCM could be re-used
for the modelling of another set of know-how - particularly for the modelling
of organizational how-how - or for the building of another knowledge management
application.
What follows is organized
into five sections: after having described the methodology used to build the
OCM in Section 2, we present the ontology in Section 3. Then, Section 4
describes the way this ontology is implemented in our application - a server
for change management knowledge mapped into conceptual graphs. In the last
Section, we discuss the status and the possible re-use of the obtained
ontology.
2. Methodology
The methodology which has
been used to design the OCM is composed of two main stages.
The first stage consists in
analyzing the knowledge to be modelled by gathering a “know-how
expressions corpus” starting from observations and interviews - classic
semi-directive or elicitation type interviews. Elicitation interview techniques
(Vermersch 2001) help the interviewed person to describe the course of his/her
subjective experience very precisely. This kind of interview gives access to
pre-conscious cognitive processes activated by a subject when realizing an
action, i.e. to the internal strategies he implements unawarely. This provides
a corpus capable of expressing the required know-how - then extracting and
categorizing ”knowledge items” from this corpus. “Knowledge
items” are “knowledge instances” or “particular
expressions of the knowledge of an individual about change management”.
Formally, they are propositions empowered with an informative value for someone
else. The categorization of those “knowledge items” allows
identifying the higher concepts of the hierarchy.
The second stage consists
of designing the ontology by translating the previous results into hierarchies
of concepts and relations.
First, we have built the hierarchy of concepts by translating the
categories resulting from our analysis of change management knowledge into
concepts.This was done without difficulty since the knowledge partitioning criterion
related to the items’ object. Roughly speaking, each kind of knowledge
thus has the form “knowledge about X ”; and from this, we simply
had to translate “knowledge about X” into “X”. For
example, the category “knowledge about the world” became the
concept [element of the world]and so on. This was followed by organizing the listed concepts in a hierarchy and
completing the hierarchy so obtained with missing subtypes of each concept and
with abstract concepts having the capacity of regrouping the concepts which
could be specified by the same relations.
Once the hierarchy of concepts has been built, at least partially, we have designed the hierarchy of relationships or relations. This second hierarchy makes it possible to connect concepts in order to express knowledge in the form of conceptual graphs. For this, we began by listing the relationships we needed in order to represent the collected change management knowledge items, using the concepts previously identified. The first step was thus “bottom-up” and iterative (going back and forth between designing and using the model). We interrupted this process when the new relations that could be added became rare. The second step, “top-down”, consisted in making an inventory of the possible relations between each pair of higher concepts. Once this inventory was made, it was necessary to specify and check the validity of the inherited relations at the level of lower concepts.
Finally, we finalised the
obtained hierarchies implementing them and harmonizing them as effectively as
possible with existing models.
3. Presentation Of The OCM
To provide a clearer
picture of the ontology, we show the hierarchies of concepts and relations in
separate figures.
3.1. Hierarchy Of Concepts
In this section, we present
the hierarchy of the OCM’s concepts (Figure 1). Change management can
have a bearing on various objects. OCM’s concepts represent those various
objects. Only higher levels of this hierarchy could probably be applied to
another set of know-how. It should be noted that application of OCM to another
set of know-how has not been tested. However, for the sake of clarity, Figure 1
also presents some middle level concepts and examples of instances.
Each concept is defined by
a textual description, an inventory
of its sub-types and instances (ontological
commitment). Bachimont (2000) distinguishes between the “semantic
commitment”, which consists in defining the meaning of each concept by
four differential principles (based on what identifies and differentiates it
from its father and what identifies and differentiates it from its neighbours)
of the “ontological commitment”, which determines a concept by the
extension of the objects which refer to it. This is followed by the listing of
its possible relations with other concepts
(note the relations, defined in 4.3, are organized in a hierarchy and we do not
define the relations of property in this paper.). The listing of a
concept’s relations can be found by seeking the signatures of
relations.We do not systematically clarify the differential principles which
define a concept by identity and difference relative to its close neighbours
(semantic commitment). These principles are implicitly contained in the very
mention of its relations.
To complete Figure 1, we
propose to define some of the concepts in the hierarchy whose meaning is the
least obvious. We only mention the most specific relations which can be
mentioned about a concept. Each time we use a term from an existing model, we
describe it. Section 5.2 more generally comments on similarities and
differences between the presented ontology and others.
3.1.1. First Level
Concept
Concepts are written
[concept] and relations are written (relation); a [text] can only be related to
an [object of knowledge] by the relation (clarification). It is indirectly
related to the concepts which are linked to the concept it comments. A
[quality] can only be related to an [object of knowledge] by a relation
(property).
Object of knowledge:
Anything that a knowledge item which is included in the modelled know-how can
bear on. It is the universal concept, i.e. the most general concept of the
hierarchy, which any other concept of the hierarchy is a type of.
Relations.
Any [object of knowledge], except [text] and [quality], can have a [quality] as
(property), a [perdurant] as (phase of use), a [project] as (related project),
an [agentive social object] as (related actor), a [resource] as (resource), a
[problem] as (associated problem) or (solved problem), another [object of
knowledge] as (proximate concept) or (equivalent concept), a [proposition] as
(required knowledge), and a [text] as (clarification).
3.1.2. Second Level Concepts
Element of the world: Any
component of the subject’s environment, i.e. with respect to which the
subject positions himself as a “knowing subject”. Note that through
the concepts [action] and [element of the world], we find again the fundamental
distinction between knowledge about action and knowledge of the world
established by our fieldwork.
Relations.
An [element of the world] can have in addition to the relations inherited from
its father [object of knowledge]: a [fact] as (related fact).
Perdurant: Everything that
“occurs”, unfolds
Relations. A
[perdurant] can have in addition to the relations inherited from its father
[object of knowledge]: an [experience’s narration] as (illustration by a
narration), another [perdurant] as (next stage), (previous stage), (sequential
stage) or (parallel stage).
Proposition: We borrow this
concept from the SUMO ontology, where it is defined as “semantic or informational content”
(
Relations: A
[proposition] can have in addition to the relations inherited from its father [object
of knowledge]: an [object of knowledge] as (usage) and a [person] as (author).
Text: Textual description
which allows commenting a concept.
Relations. A
[text] can be a (clarification) for an [object of knowledge] or a (definition)
for a [notion].
Project: General framework
which surrounds the practitioner’s mission. This framework is either a
simple political will of change or a plan supported by a project team. As
specified by the below relations, this concept is only appropriate for a know-how
closely related to change management. We suggest re-defining its relations
according to the specific domain to be modelled.
Relations. A
[project] can have in addition to the relations inherited from its father
[object of knowledge]: an [aspect of organization] as (impacted aspect of the
organization), an [organization] as (changed field), or (initiator), a [group]
as (impacted population), a [person] as (actor having worked on the project), a
[possible case] as (situation aimed at), an [action] or a [chain] as (method),
an [object of knowledge] as (related content), a [document] as (built
document), an [experience’s narration] as (illustration by a narration)
and a few [project’s qualities], that we do not detail in this article,
as (project’s properties). The relation (degree of change) is for example
a (project's property).
Problem: A situation which
is not satisfying for the practitioner and requires a solution. We have
discovered that instances of the concepts of the type [problem] could be
described by a graph always having the same type of structure. They are thus
“contexts”, that is concepts whose instance is defined by a
“nested graph”, or “designator” according to
Sowa’s terms (Sowa 1984). More specifically, four kinds of structure have
been identified and categorized into two types of problems: [dilemma] and
[difficulty]. We describe these concepts in a few lines. Representing problems
with nested graphs allows users to solve a [problem] not only by consulting the
[action] linked to this problem by the relation (solution) but also by
consulting the information which concern the concepts its nested graph is built
from.
Relations. A
[problem] can have in addition to the relations inherited from its father
[object of knowledge]: an [object of knowledge] as (arising context) and an
[action] as (solution).
Quality: Possible value of
a (property). Each [quality] is related to a specific [object of knowledge]
with a specific (property). For example, a [degree of change: revolution] is
related to a [project] with a (degree of change). No inverse relation of
(property) exists because a [quality] does not constitute a relevant starting
point for browsing within the graph base. Indeed, a [quality]’s function
is to inform about another concept but not to be characterized itself.
3.1.3. Third Level Concepts
Agentive social object:
Human or organizational entity. We borrow a notion defined in DOLCE as a
“non-physical object which is
generically dependent a community of agents” and “to which we ascribe intentions, beliefs, and
desires” (Masolo et al. 2003).
Relations:
An [agentive social object] can have, in addition to the relations inherited
from its father [element of the world]: an [object of knowledge] as (related
knowledge) or a quality [SNCF’s affiliation: yes/no] as (SNCF’s
affiliation).
Fact: State of things
supposed to be real, whether it is verified or not. A [fact] can be a [possible
case] in which case it is close to the usual definition of «fact» as «situated
event having actually occurred». But it can also be a [general principle], that
is a general law supposed to describe
the world such as it is. Relations. A
[fact] can have, in addition to the relations inherited from its fathers
[element of the world] and [perdurant]: a [perdurant] as (cause), another
[fact] as (sign) or (signification), an [action] as (recommended action), an
[element of the world] as (related element), and a property [kind of fact] as
(kind of fact).
Assertion: Proposition
stating the existence of a state of things which can be opposed to another one,
i.e. opened to argument. Formally, assertions are either a [general principle],
or a «context» whose nested graph has five possible forms (see Figure 1 for
examples). An [assertion] can be: a [causality] if its nested graph has the
form [[action] « (consequence/trigger) « [fact]], a [chain] if its nested graph has the
form [[action] « (compatible stage) and/or (other
possible mean) « [action]], an [interpretation] if
its nested graph has the form [[fact] « (significance/ sign) « [fact]], a [modality] if its nested graph has
the form [[action] « (means/goal) « [fact]] or a [solving] if its nested graph has
the form [[problem] « (solved problem/solution) « [action]].
Relations.
An [assertion] can have, in addition to the relations inherited from its father
[proposition]: another [assertion] as (opposition) and a [person] as
(modeller).
Unspecified context: An
[unspecified context] is a proposition which has the form of a context whose
nested graph is unspecified. This concept enables to state things about every
graph, especially to mention its author and the environment it is relative to
(type of project, phase of use etc.).
Relations:
An [unspecified context] can have, in addition to the relations inherited from
its father [proposition]: a [person] as (modeller).
Difficulty: An obstacle
faced by an actor carrying out an action. A [difficulty] can be either a
[difficult fact: [fact]], a [difficult action: [action]], or the accomplishment
of two difficult-to-conciliate actions. This latter case, which can be
represented with the standard graph: [Difficulty: [action] « (and) « [action]], is common in change
management practice. Indeed, actors are frequently in the situation of seeking
“the right balance” between two opposite actions.
Dilemma: A difficult choice
between two possible actions. Dilemmas can be described by a graph of the type
[dilemma: [action] « (conflicting) « [action]].
Example of instance: take the issue which consists in wondering whether, to communicate to
the users, it is better to communicate about changeable information or not;
this will be represented by the graph: [dilemma: [action: to communicate about
changeable information] « (conflicting) « [action: not to communicate about changeable
information]].
3.2. Hierarchy Of Relations
To define concepts, we have
made reference to the relations which could be established between them.
Nevertheless, we have not yet systematically defined these relations. Their
organization in a hierarchy is shown in Figure 2. Before defining a few of them
by way of example, some remarks are in order:
A relation has as its
“signature” the concepts
which it connects. For example, the relation (role) has the signature {person,
action}, which means that a concept of the [person] type has a concept of the
[action] type as (role). In other words, the signature given as an example
allows the graph [person: Mr. X] ® (role) ® [mission: to manage a project],
which will be read as follows “Mr. X has to manage a project as
role”. The signature of a relation is made up of concepts equivalent to,
or lower than, those which constitute the signature of its father.
Figure 1:
Hierarchy Of OCM’s Concepts (high and middle levels) (extract)
Each relation has an inverse relation, unless it is symmetric
as the relation (compatible stage) for example, given that two inverse
relations connect the same concepts but each in a different direction. In
Figure 2, inverse relations are arranged the one below the other one, within
the same node. Only the signature of the first one is indicated. For example,
the inverse of the relation (agent): {action, person} is the relation (role):
{person, action}. The details of the inverse of each relation makes it possible
to read any graph starting from one or the other of the connected concepts. For
example, the relation (person having worked on the project), which connects a
[person] to a [project], having the relation (managed change) as its inverse,
the information [project: p] ® (person having worked on the project)
® [person: Mr x] (read as “a person having
worked on the project p is Mr x”) could also be expressed by [person: Mr
x] ® (managed change) ® [project: p] (read as “Mr x has managed
the project p”). Thus, the same information that we have just expressed
in two different ways will be able to appear in the future application whether
the concept we are interested in is [project: p] or [person: Mr x].
We indicate two inverse relations
as follows: (agent)/(role).
Below are some examples of
relation definitions. Each of them includes a signature, an inverse
relation and a textual definition:
Significance {fact, fact} /
Sign: A fact can mean another fact, i.e. signify that this other fact occurred.
The relation (significance), by giving the possibility to the users of interpreting their environment, calls
precisely for the “acquisition of information” component of their
know-how (see Section 2.3). For example, [fact: the members of a participative
working group have an aggressive behaviour] will have as possible
(significance): [fact: there are conflicts within the group].
Figure 2: Hierarchy Of
OCM’s Relations (extract)
The following relations
allow the establishing of links between knowledge
about action and knowledge on the
world:
Ø
Possible action {possible case, action} / Condition: It is a question of
specifying which preliminary situation conditions the accomplishment of an
action.
Ø
Recommended action {fact, action} / Circumstance (if the target [fact]
is of the type [possible case]), or Reason (if the target [fact] is of the type
[general principle]): For an [action], “to be recommended given a
fact” means “to have to be carried out in case the target fact
actually occurs”.
Ø
Required knowledge {object of knowledge, proposition} / Use: Reality to
be observed or taken into account to understand an object of knowledge, notably
to understand how to carry out an action.
3.3. Graph Example

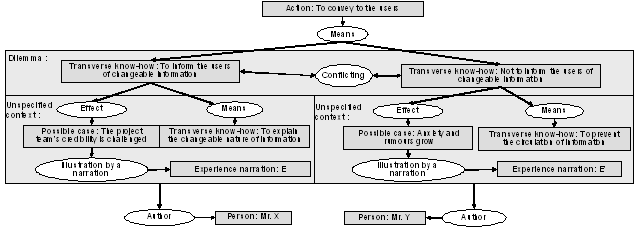

Figure 3 shows the kind of
conceptual graph which can be constructed from the OCM. Such graph is validated
by the knowledge server’s users themselves. Indeed, the interface of the
future application’s prototype provides the user with the possibility to
model his own knowledge, therefore to complete or criticise the graph base (see
the input “Share my knowledge” in Figure 5).
Figure 3: Example Of A Conceptual
Graph Based Of The OCM
The representation of change management knowledge - or other mostly tacit knowledge – through conceptual graphs offers two kinds of advantages. First, it is a good means to obtain a highly capable knowledge server. Indeed, on top of the kinds of operation allowed by any database (to search the different arcs linked to some concept within the graph base, to browse within the concepts’ hierarchy, to identify some concept’s instances, etc.), conceptual graph formalisms (Sowa 1984), (Sowa 2000) are a means for:
Ø considering modelled knowledge as being a “context”, i.e. a concept whose the referent is a nested graph and which can itself be specified by relations with others concepts (See also the definitions of “Assertion” and “Unspecified context” in Section 3.2.) Such capacity provides conceptual graphs with a great expressiveness.
Ø executing some generalization operations on data. This capacity could enable to identify recurrent data starting from particular graphs of the base (Remillieux et al, 2007; p.192).
Secondly, a conceptual graph provides a visual representation of the knowledge to be shared. Such representation facilitates the construction of a clear and general view of information by the future knowledge server’s user. However, the interface of the application prototype, which is presented in Section 4, does not use this kind of representation yet.

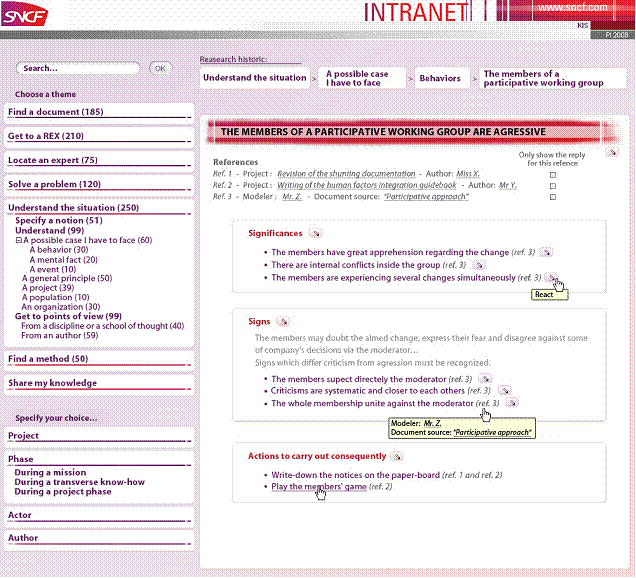

4. Prospects For Application
The OCM was designed to
structure a knowledge server in the domain of change management. A prototype of
this server is in the pipeline. Before presenting an example of this

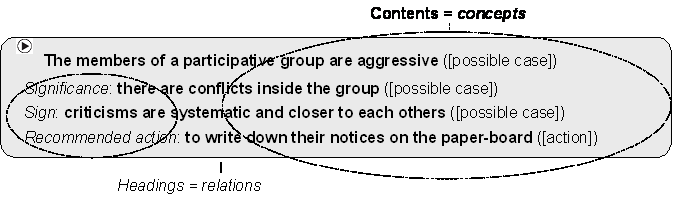

prototype’s interface, we will illustrate the evolution from the ontology
to the server by a schematic diagram of the interface (Figure 4). In this
example, the tool informs the user about the possible case [the members of a
participative group are aggressive] by a list of headings
(“signification” “sign” “recommended
action”). It is important to note that the headings correspond to relations of the ontology and their
contents to its concepts.
In other words, the
interface represented in Figure 4 is based on the following conceptual graphs:
Ø
[possible case: the members of a participative group are aggressive] ® (signification) ® [possible case: there are conflicts
inside the group];
Ø
[possible case: the members of a participative group are aggressive] ® (sign) ® [possible case: criticisms are
systematic and closer to each others];
Ø
[possible case: the members of a participative group are aggressive] ® (recommended action) ® [action: to write down their
notices on the paper-board].
Figure 4: From The Ontology To
The Interface
As a result, you have a
system in which the user can indefinitely “zoom in”, on each
content, as both the answer elements and the query elements can
This kind of system is
particularly relevant for sharing tacit knowledge. For example, thanks to
Vermersch’s elicitation techniques (Vermersch 2001), it is possible to
describe very precisely the stages which compose an action. Thus, we know that
in order to write down participants’ notices, you need to understand what
they want to say; that in order to understand what the participants want to
say; you have to observe and read their movements etc. Our system permits the
user to access these increasingly specific descriptions by zooming successively
on each of the proposed stages.
To illustrate Figure 4,
Figure 5 provides a more realistic picture of the future application’s
interface which will allow the user not only to collect some information but also to share his own knowledge and experiences.
Figure 5: Interface Of The Change
Management Knowledge Server Prototype
5. Discussion
In this Section, we detail
the originality and the scope of the OCM.
5.1. Comparison With Existing Conceptual
Modelling Approaches
The originality of the OCM firstly
lies in its purpose - which is to allow the sharing of change management
know-how through the medium of a knowledge server. Then OCM differs from other
similar models like those which are built in design research and goal-oriented
or argumentation modelling.
Change management may be
considered as a practice consisting in solving design problems, that is to say
problems which can
On the other hand, the
“Reflective Practice paradigm” proposed by Schön (1994) insists on
the tacit dimension of the design process: practitioner’s knowledge
cannot be reduced to a determined list of possible solutions related to a given
problem. It’s a “knowing in action”, which cannot be easily
shared. Simon (1973) himself recognized the imprecise nature of certain
problems. Those “ill-structured” problems cannot be completely
described. In the course of instigating changes, actors regularly meet a number
of such relational and imprecisely defined problems. The OCM aims to explicit
and make ’shareable’ the know-how which enables these problems to
be solved.
5.2. Comparison With Existing Models
The original purpose of the
OCM, previously defined in Section 5.1, involves an original content - as the
comparison with other models has confirmed.
As explained in Section 2,
we built the OCM according to a bottom-up strategy, without reusing any
existing ontology. Nevertheless, once the ontology was constructed, we have
compared it with others, notably for wider interoperability. More specifically,
we have taken into account the three following fields of research (see previous
Section for the two first fields): goal-oriented modelling, argumentation based
negotiation and foundational ontologies [DOLCE (Masolo et al, 2003), SUMO (
However, three kinds of
differences between OCM and the existing models confirmed how difficult it
would be to re-use one of them to obtain an ontology which was both sufficient
and relevant for our goal. First, many distinctions were not useful for our
objective. A high-level example is the one which is often made between abstract
and physical objects (SUMO, KR Ontology). Based on the criterion of the
location in space, this distinction is irrelevant for the OCM, which does not
need to characterize things according to by their location. On the contrary, we
have not found in the literature distinctions like the one we have observed
between dilemma and different kinds of difficulties to explain what a [problem]
is. Third, we have often found in other models notions which, although similar,
were not exactly equivalent to ours. For instance, the concept [occurent] (KR
Ontology) is not equivalent with [fact] although it is close to it. Indeed,
defined by its possible decomposition in stages, this concept cannot be the
supertype of [general principle].
More generally, the
ontology designed is based on a specific logic which explains these
differences: more than distinguishing concepts according to the intrinsic
qualities of what they refer to (like the capacity to be located or not), it
differentiates among them according to their meaning for an actor’s point
of view (like the fact of being started by the actor or not for a given
perdurant). In the same way, more than gathering together relations according
to their general nature of “prehended” or “prehending
entity” for example (Sowa 2000), we grouped relations according to the
kind of information they bring to the user of the knowledge server
(description, environment, consequence etc.).
5.3. The Status And
According to the foundational vs. domain ontology typology, the OCM is a domain ontology that is an
ontology designed for a specific knowledge domain. Indeed, this ontology has
been built for the domain of change management and a particular sort of
application (knowledge server). In this sense, its relevance is limited to the
change management task. Furthermore, the OCM is strictly speaking an epistemology rather than an ontology insofar as it concerns the
change management’s actors ways of knowing. In other words, it deals with
the world as it is perceived by subjects in a specific context instead of the
world in itself.
However, even if it is built
from a particular domain, most of OCM’s high levels are nonetheless as
generic as those of any foundational ontology. In addition, even if the world
it concerns is not an absolute world, it is a world anyway. In this sense, the
OCM could be relevant for another set of know-how, notably those related to
organization management like project management, risk management or strategy.
Some initial elements confirm this idea. Indeed, as explained in Section 2.4,
the structure of change management know-how, which results from our analysis
and on which the OCM is based, shares characteristics with that of any
know-how. For example, the importance of establishing permanent interactions
between decision actions and world knowledge can be just as easily observed in
change management as in psychotherapeutical interviewing described by Schön
(1994). Furthermore, the OCM could be re-used for other applications related to
knowledge management. Indeed, as explained in Section 5.1, the OCM’s
originality also rests with its purpose: to allow the sharing of mostly tacit
knowledge through the medium of a knowledge server.
More precisely, we consider
that every concept presented in 3.2 could be relevant for another set of
know-how, except [project], [project quality], [project phase], [group],
[aspect of organization], [organization] and their subtypes - which
specifically regard professional know-how related to organizational management.
However we cannot be certain of OCM’s domain of application before having
used it to model another set of know-how than change management.
6. Conclusion
We have presented the
Ontology for Change Management, constructed in order to allow SNCF actors to
share their knowledge in change management.
The OCM formalizes
knowledge related to a practice, i.e. to knowledge which is mostly tacit and
embedded in actors’ practice. Our aim was to design an ontology perfectly
adequate to model such knowledge and we tried to do that by designing its
higher levels starting from the study of knowledge related to a particular
know-how, that of change management. Our study involved case study work,
consisting in observations and interviews, necessary to reach the tacit
dimension of that knowledge. We thus developed abstract categories constructed a posteriori from the domain knowledge,
as opposed to most foundational ontologies which are, on the contrary, built
starting from an a priori, i.e.
purely intellectual, approach.
Another specificity of the
OCM lies in its objective: design a knowledge server for the change management
domain which supports the sharing of the tacit dimension of knowledge. Even if
today, we still have to work on the terminology of the ontology in order to
translate it into an interface which is perfectly adapted to the user, the
application this ontology is intended for has influenced its whole design. This
is why the way in which the OCM represents reality intrinsically depends on the
task it is dedicated to: facilitating the elicitation and the transmission of
know-how.
Although the OCM was designed
for a particular knowledge domain, it could probably be re-used for sharing
other types of know-how, in particular those which are related to the
organizational management sciences - insofar as it includes higher-level
concepts which are not specific to change management.
In conclusion, even if our
knowledge server has been built for and
starts from knowledge managers, we
must be careful about its actual use when it will
First, we have to mention
that many organizational obstacles can stand in the way of its real use (Prax
2003). These obstacles, such as intra-organizational conflicts or users’
reluctance to share their knowledge, raise problems which transcend our domain.
Another area of uncertainty, related to the problem of knowledge appropriation,
is particularly important for the tacit
nature of the knowledge we expect to share: once the knowledge is
elicited from subjects and modelled, how can we ensure that it will be
assimilated by others, i.e. become again actual knowledge which is usable in
practice?
7. Acknowledgments
We thank every SNCF’s
change manager we have observed or interviewed, for having contributed to our
work, Mondeca and KnowledgeConsult companies for having collaborated on the
prototype’s buildind and Claire Goosens for having designed its
interface.
8. References
Bachimont, B. (2000). Ingénierie des connaissances, évolutions récentes et
nouveaux défis. In J. Charlet, M. Zacklad, G.
Baneyx, A. and J. Charlet (2005). Construction d’ontologies médicales
à partir de textes : propositions méthodologiques. In Actes de
Bennett, B. (2005). Modes of concept definition and varieties of vagueness. Applied Ontology 1(1), 17–26.
Crozier, M. and E.
Friedberg (1977). L’acteur
et le système - Les contraintes de l’action collective.
Dorst, K. (2003). The
problem of design problems. In E. Edmonds and N. Cross (Eds.), Expertise in design, design thinking
research symposium 6,
Echtler, F. (2006). Using
semantic web languages in argumentation models. Technical report, AI/Cognition
group/Technical University of
Fernandez-Lopez, M., A.
Gomez-Pérez, and J. Pazos-Sierra (1999). Building a chemical ontology using
methontology and the ontology design environment. In IEEE Intelligent Systems, pp. 37–46.
Grouard, B. and F. Meston (1993). L’entreprise
en mouvement, conduire et réussir le changement. Dunod.
Joule and Beauvois (2003). La soumission librement consentie. Comment amener les gens à faire librement ce qu’ils doivent faire ? Paris, PUF.
Kavakli, E. and P.
Loucopoulos (2006). Experiences with goal-oriented modeling organizational
change. IEEE Transactions on Systems,
Man, and Cybernetics. Part C : Applications and Reviews 36, 221–235.
Lamsweerde, A. V. (2001).
Goal-oriented requirements engineering: a guided tour. In 5th IEEE International Symposium Requirements Engineering, pp.
249–262.
Lamsweerde, A. V. and L. Willemet (1998). Inferring declarative requirements specifications from operational scenarios. IEEE Transactions on Software Engineering 24(12), 1089–1114.
Latour, B. (1993). Aramis ou l’amour des techniques. Editions la découverte.
Masolo, C., S. Borgo, A. Gangemi,
N. Guarino, and A. Olramari (2003). Wonderweb deliverable d18. Deliverable Version 1.0, Laboratory For
Applied Ontology - ISTC-CNR.
Newell, A. and H. Simon
(1972). Human Problem Solving.
Prentice-Hall. Quoted by Dorst (2003).
Nurcan, S. and C. Rolland
(2003). A multimethod for defining the organizational change. Inform.
Softw. Technol. 25(2), 61–82.
Polanyi, M. (2002). Personal Knowledge. Routledge.
Prax, J.-Y. (2003). Le manuel du knowledge management.
Remillieux, A., C. Petitmengin, J.-L. Ermine, and C. Blatter (2007). Construction d’une ontologie pour le partage des connaissances implicites de conduite du changement (OCM). In C. de Publication Universitaire (Ed.), Les ontologies, mythes, réalité et perspectives,JFO 2007, pp. 175–194.
Schön, A. (1994). Le praticien
réflexif - A la recherche du savoir caché dans l’agir professionnel. Les éditions logiques.
Simon, H. (1973). The
structure of ill-structured problems. Artificial
Intelligence 4, 108–201. Quoted by Dorst (2003).
Sowa, J. (1984). Conceptual
Structures : Information Processing in Mind and Machine. Addison-Wesley.
Sowa, J. F. (2000). Knowledge
Representation: logical, philosophical, and computational Foundations. Brooks
Cole Publishing Co.,
Verheij, B. (2005). An argumentation core-ontology. In Agentlink technical Forum Group. Quoted by Echtler (2006).
Vermersch, P. (2001). L’entretien d’explicitation.
Watzlawick, P. (1980). Le langage du changement, éléments de communication
thérapeutique. Editions du
Seuil.
Zweigenbaum, P. and C. Menelas
(1995). Menelas :
Coding and information retrieval from natural language patient discharge
summaries. In M.-F.Laires, M. Ladeira, and J. Christensen (Eds.), Advances in
Health Telematics, pp. 82–89. Ios Press,
About the Authors:
Anne Remillieux has a
Research Master's degree in Philosophy (
Claire Petitmengin is
Associate Professor at Institut Télécom (
Jean-Louis Ermine obtained
a PhD in fundamental mathematics and the title of National Research Director in
computer science. For more than ten years, at the
Christian Blatter has two
masters’ degrees, in Ergonomics and in Psychology. He has worked in the
Applied Psychology Service in SNCF (French Railways Company), in the Ergonomics section of the Human
Resources Department. Then he was responsible for the change management in the
EOLE project (a
Anne Remillieux a Claire Petitmengin a Jean-Louis Ermine a and Christian Blatter b
a Institut Télécom, 9 rue Charles Fourier 91011 Evry Cedex,
b SNCF, 45 rue de Londres, 75 379 Paris Cedex 08, France; Email: christian.blatter@sncf.fr
